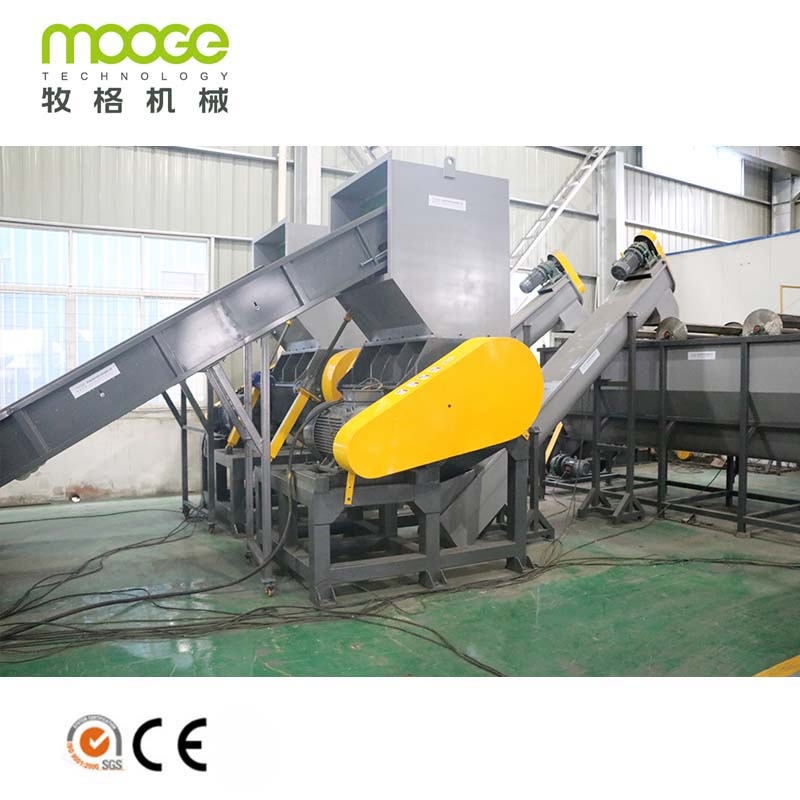

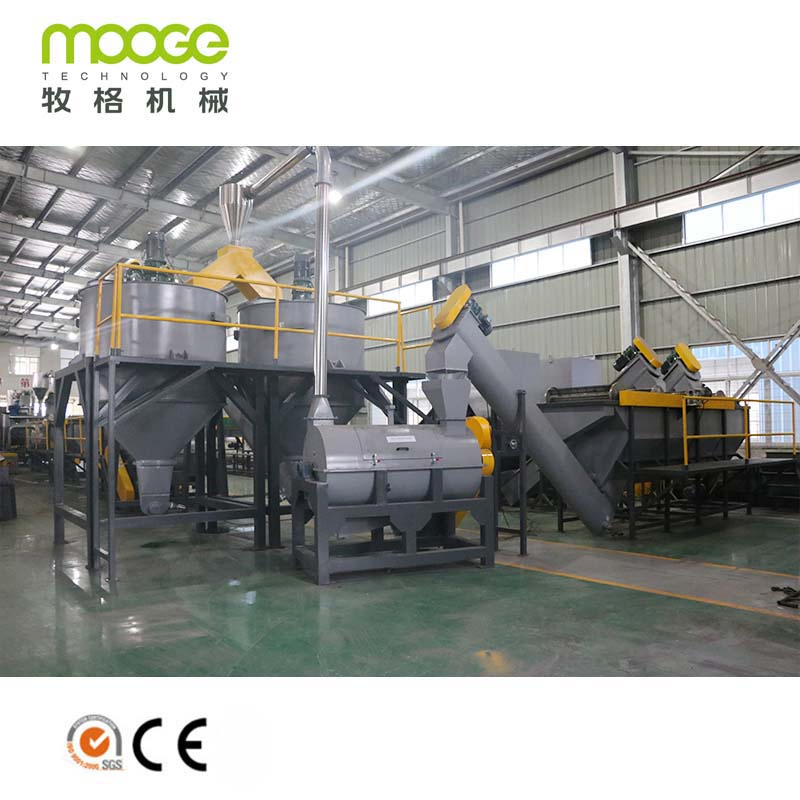

Waste PET Plastic Bottle Crushing Washing Machine

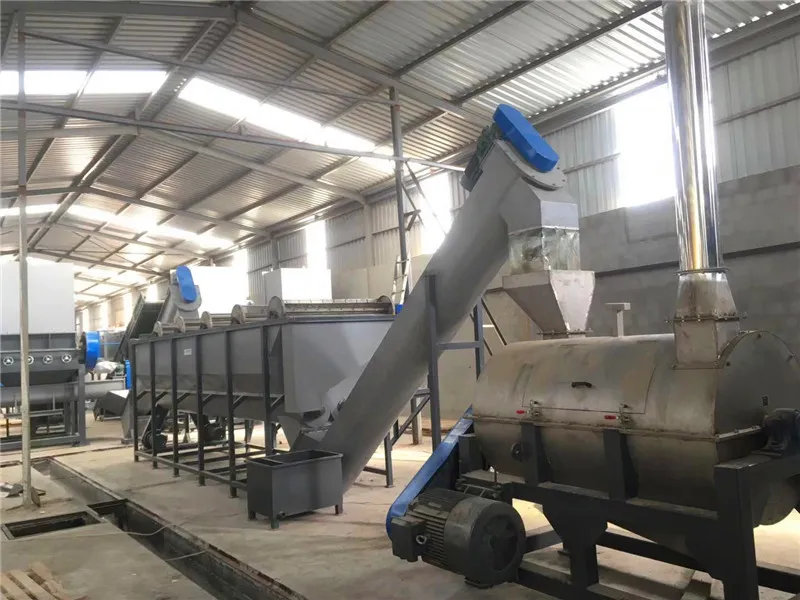

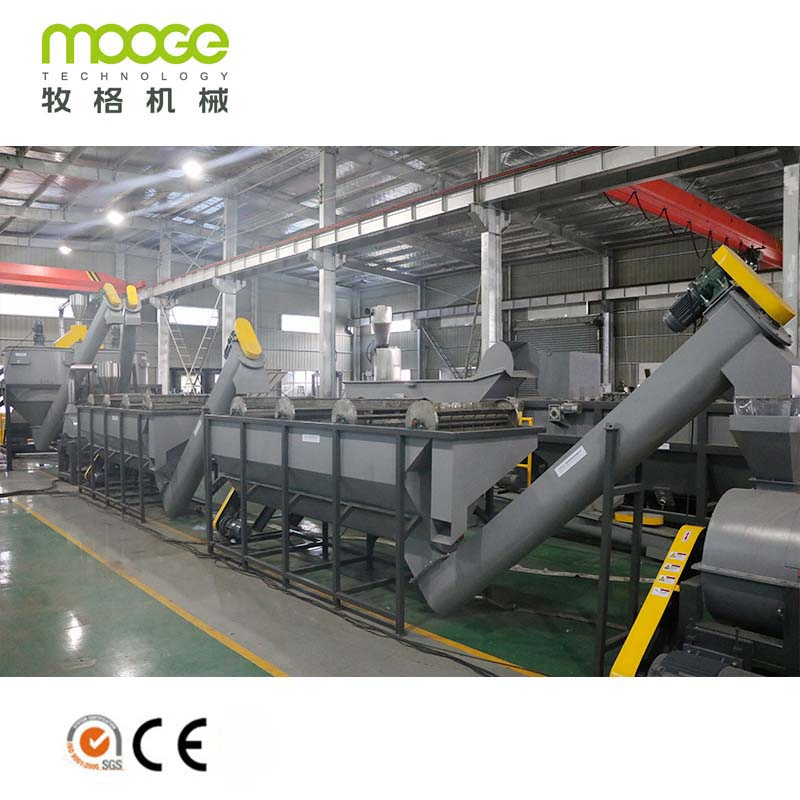

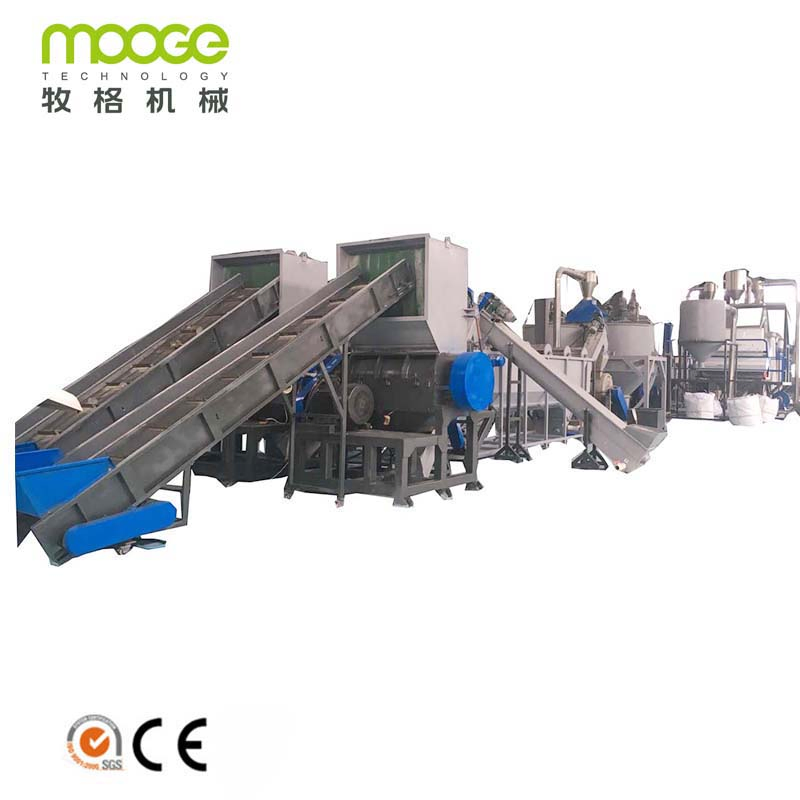

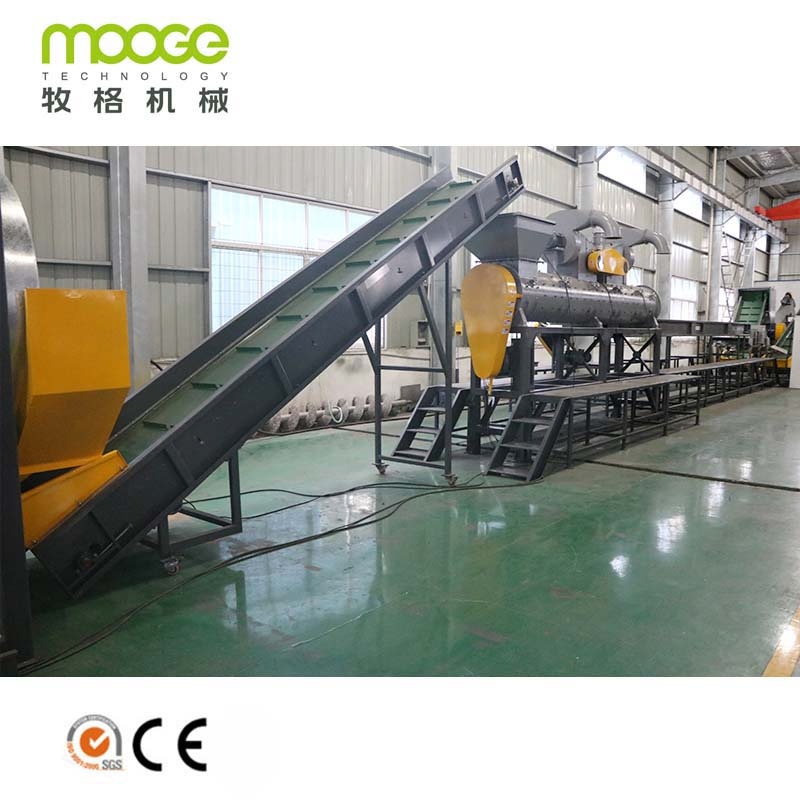

Pet bottle washing recycling machine is widely used to treat waste plastic, such as PET/PVC/ABS bottle, water bottles, cola bottle and PET plastic scrap broken into flakes. Pet bottle recycling line is a crushing, washing, drying line. PET flakes are mainly used for the fiber production and other related PET products. With advanced international industry concepts and technologies to meet waste plastic recycling requirements, this line can be configured in "L" or "U" shape according to the workshop layout.
| SN | Item Name | Function |
|---|---|---|
| 1 | Conveyor belt | Feeding material |
| 2 | Label remover machine | Remove and separator the labels from bottles |
| 3 | Sorting table | Sorting out remain labels manually; Selecting out different color bottles and non-PET bottles |
| 4 | Conveyor | Feeding material |

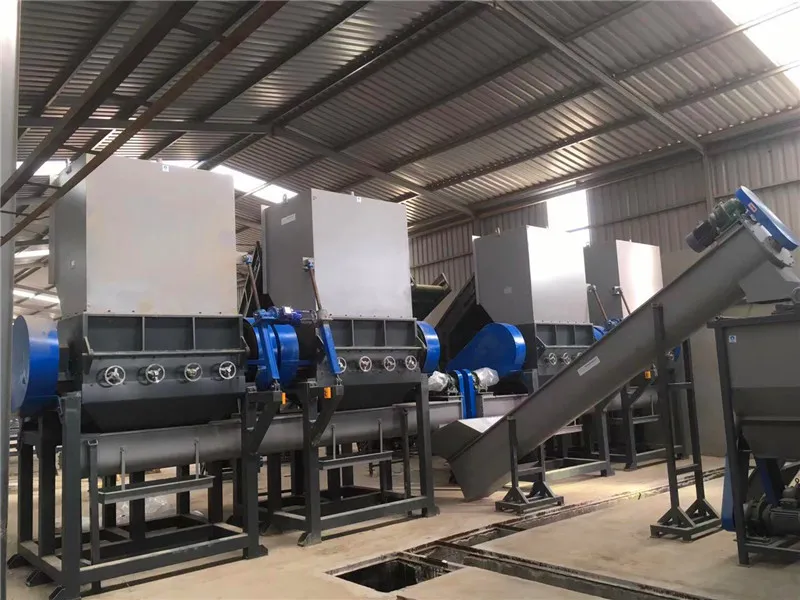

| 5 | Crusher | Crushing bottle into Flakes |
| 6 | Screw loader | Loading material |

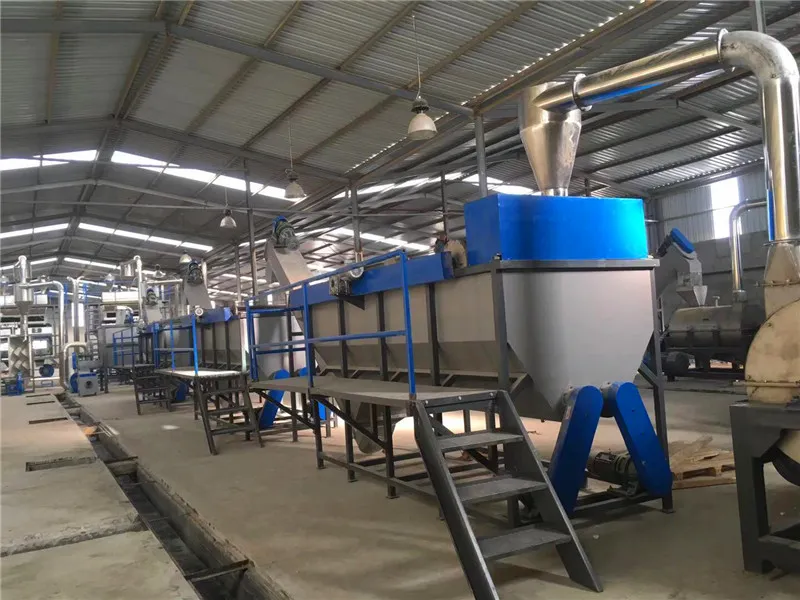

| 7 | Floating washing tank | Washing out the floating caps, rings and dirty |
| 8 | Friction washer | With high speed Friction Washing out dirty |
| 10 | Hot washing tank | With Hot water washing to remove glue and dirty |
| 12 | Horizontal friction dewater | Remove the humidity from the flakes |

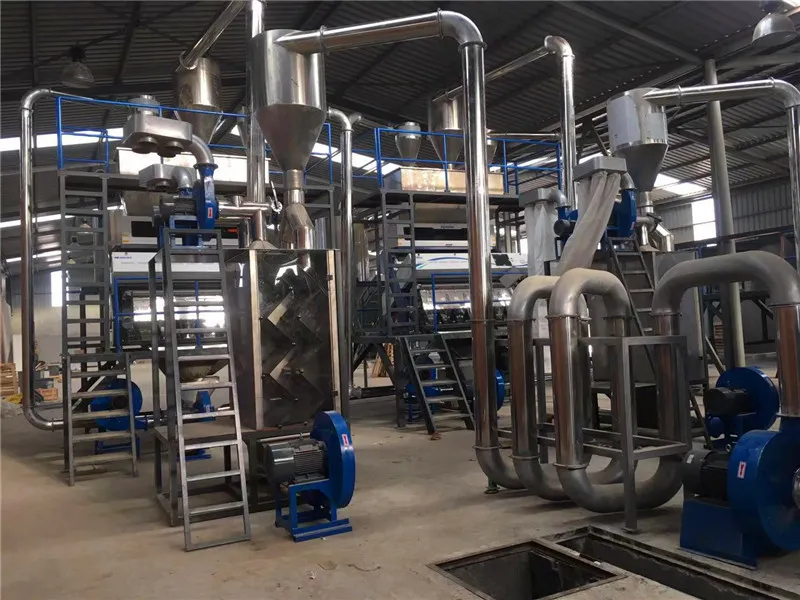

| 17 | Hot Air Drying system | Drying the flakes |
| 18 | Silo | Collecting the flakes |
| 19 | Electric control panel | Used to control the whole Line |
| Capacity Model | MT-300 | MT-500 | MT-1000 | MT-1500 | MT-2000 | MT-3000 |
|---|---|---|---|---|---|---|
| Capacity | 300kg/h | 500kg/h | 1000kg/h | 1500kg/h | 2000kg/h | 3000kg/h |
| Needed worker | 3-4 | 5-6 | 7-8 | 9-10 | 10-12 | 13-14 |
| Installed power | 210kw | 230kw | 300kw | 370kw | 450kw | 500kw |
| Water supply | 2-3t/h | 3-4t/h | 5-6t/h | 7-8t/h | 9-10t/h | 11-12t/h |
|
Final product indicators: 1. Flake size: 12-14mm | 2. Moisture content: ≈0.01% | 3. PVC content: less than 100ppm |
||||||
