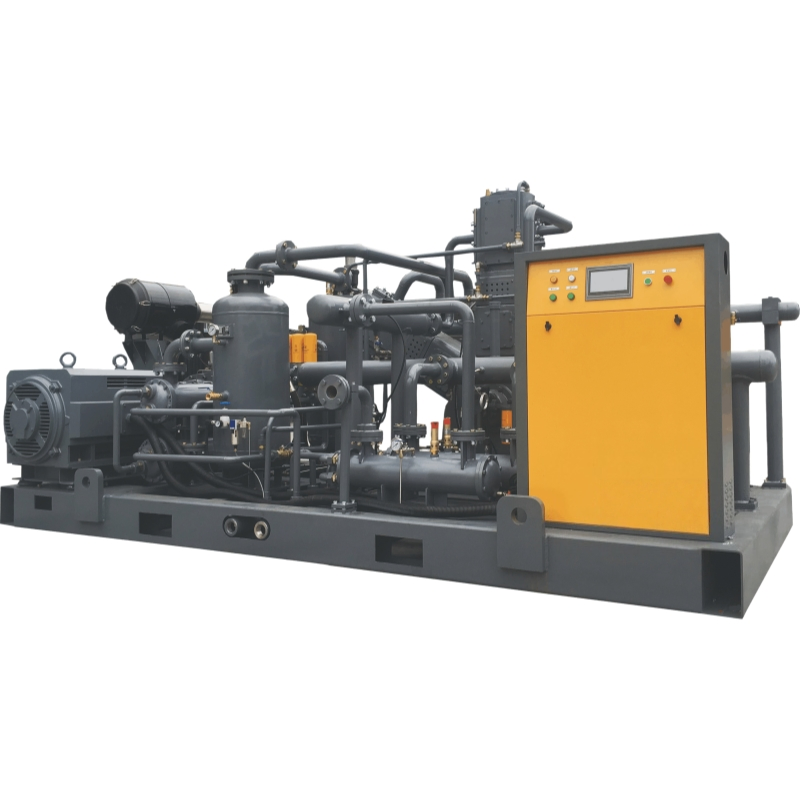

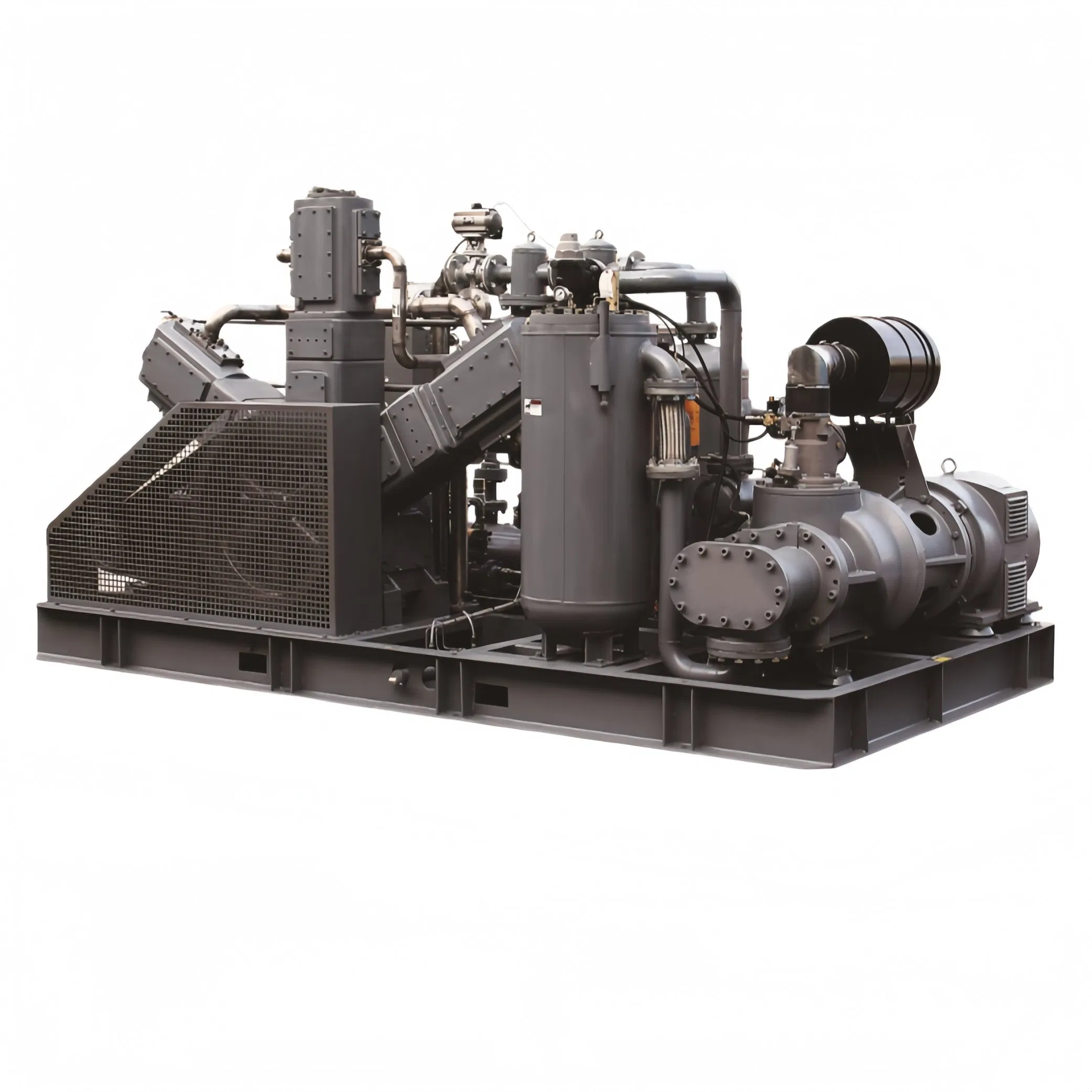

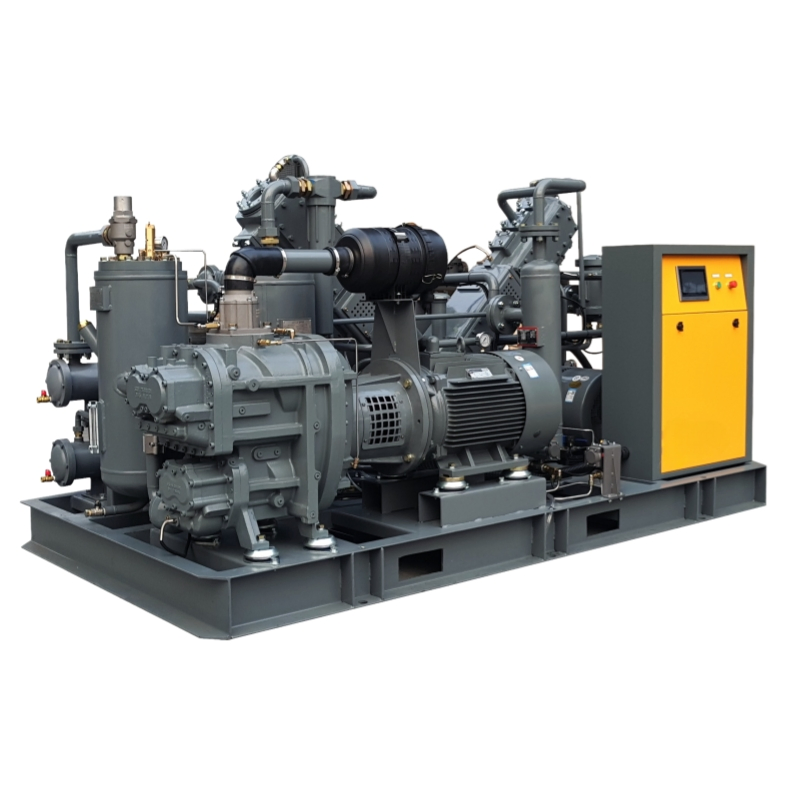

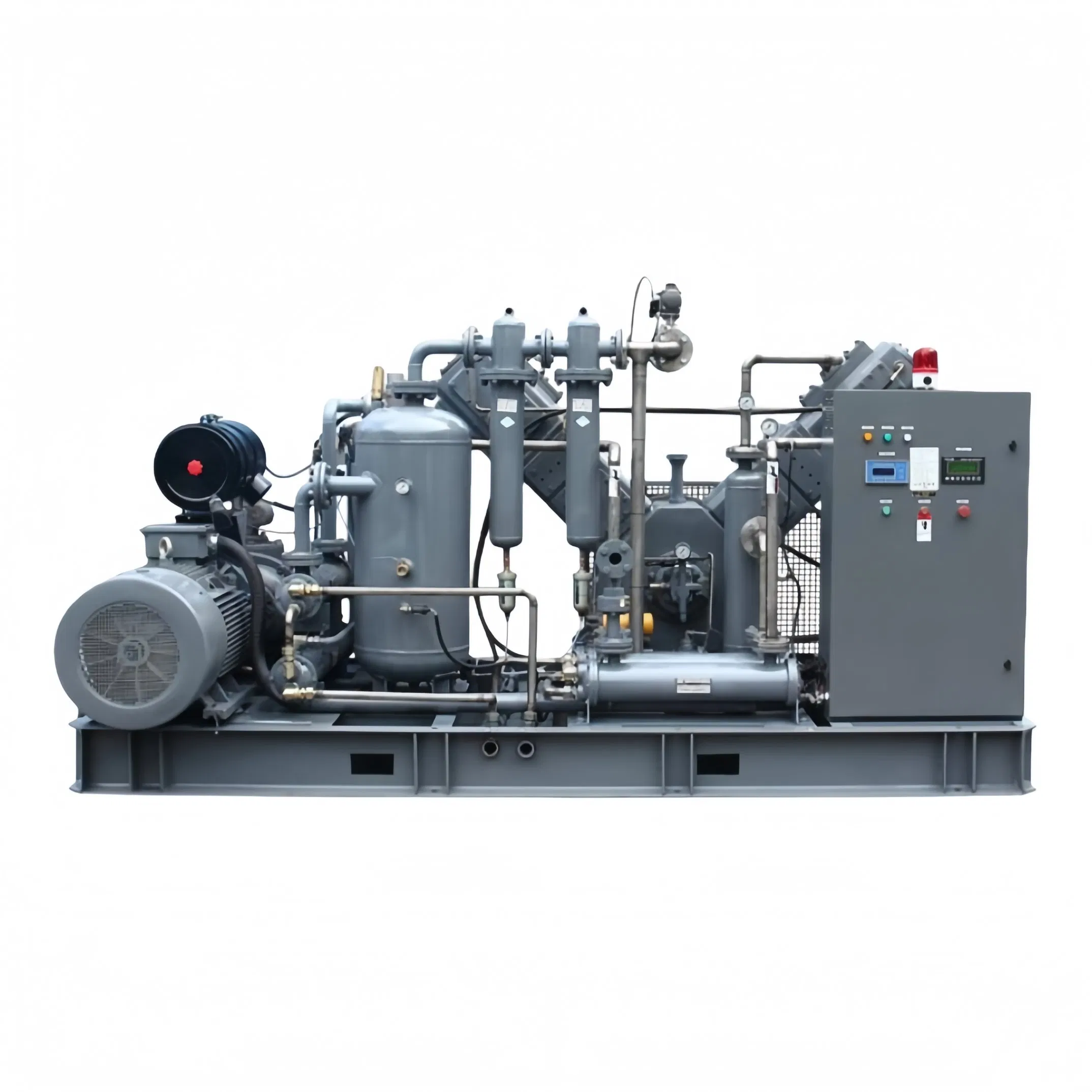

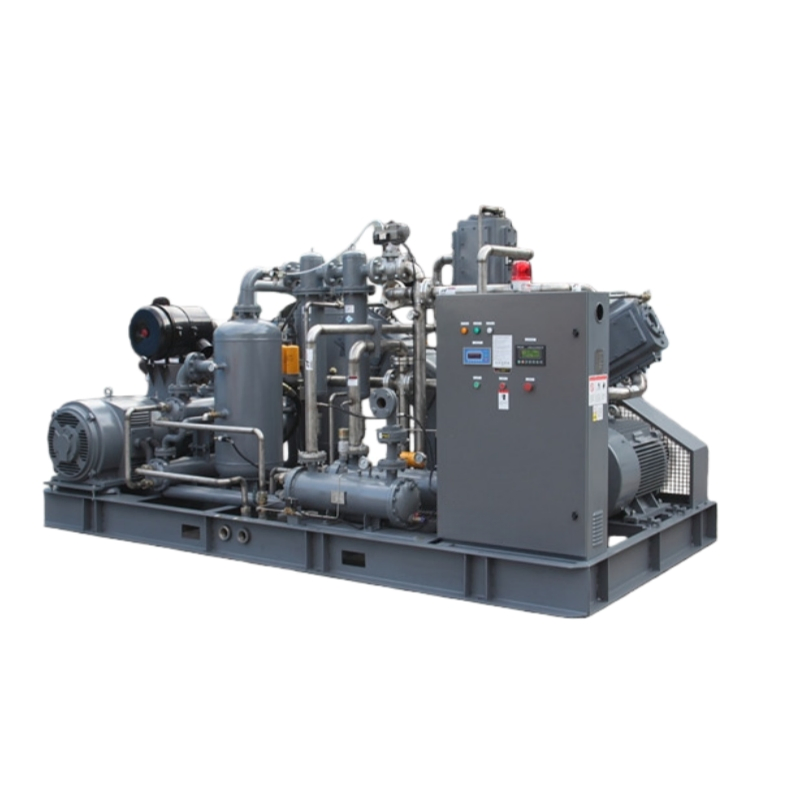

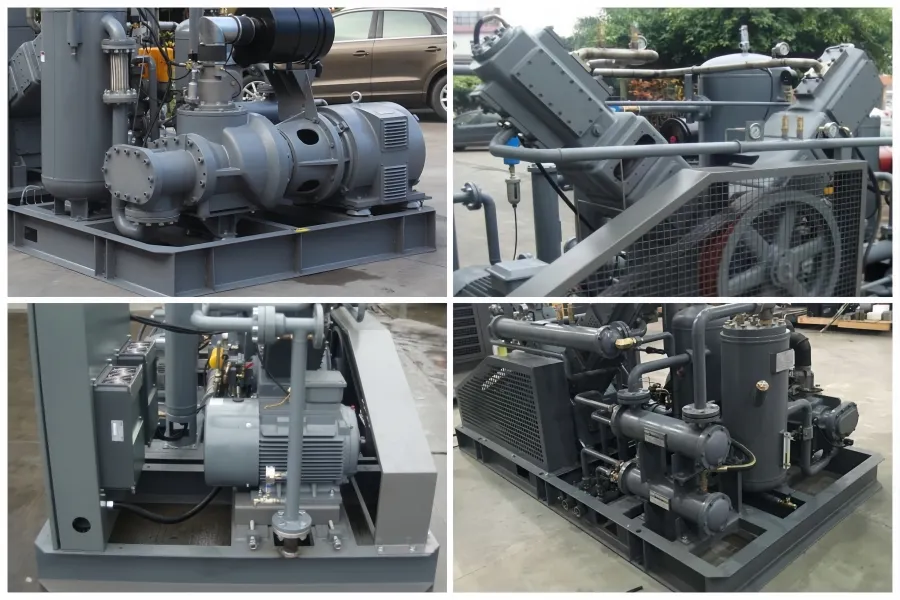

Our high pressure air compressor system includes the main engine, motor, water cooler, separator, and instrument cabinet fixed on a single base. The integrated pipeline system connects all components into a high-performance, compact compressor unit.
Three-Stage Compression Technology: The first stage uses a screw compressor (up to 0.8MPa), followed by second and third stage oil-free piston boosters reaching 2.0~4.0MPa. This ensures the gas is clean, colorless, and odorless.
| Model | Power (Kw) | Air Flow (m³/min) | Pressure (Bar) | Weight (KG) | Dimension (cm) |
|---|---|---|---|---|---|
| DK-6/30~40 | 67 | 6.0 | 30~40 | 3000 | 276*150*150 |
| DK-11/30~40 | 120 | 11.0 | 30~40 | 4400 | 362*180*200 |
| DK-20/30~40 | 222 | 20.0 | 30~40 | 7000 | 416*215*210 |
| DK-30/30~40 | 310 | 30.0 | 30~40 | 10000 | 459*215*210 |
| DK-40/30~40 | 410 | 40.0 | 30~40 | 13000 | 650*250*230 |
Our equipment meets the highest international standards for safety and performance.
