Automaticpet HDPE PC PP Plastic Bottle High Speed Bottle Sorting Machine
Automaticpet HDPE PC PP Plastic Bottle High Speed Bottle Sorting Machine
Automaticpet HDPE PC PP Plastic Bottle High Speed Bottle Sorting Machine
Automaticpet HDPE PC PP Plastic Bottle High Speed Bottle Sorting Machine
Automaticpet HDPE PC PP Plastic Bottle High Speed Bottle Sorting Machine
1 / 5
Automaticpet HDPE PC PP Plastic Bottle High Speed Bottle Sorting Machine
Automaticpet HDPE PC PP Plastic Bottle High Speed Bottle Sorting Machine
Automaticpet HDPE PC PP Plastic Bottle High Speed Bottle Sorting Machine
Automaticpet HDPE PC PP Plastic Bottle High Speed Bottle Sorting Machine
Automaticpet HDPE PC PP Plastic Bottle High Speed Bottle Sorting Machine

Automaticpet HDPE PC PP Plastic Bottle High Speed Bottle Sorting Machine

Customization: Available
Application: Chemical Industry, Clinical Diagnosis, Cosmetic Industry, Food Industry, Food Safety, Pharmaceutical Industry
Automation Grade: Automatic
Send Inquiry

Product Description

Basic Information
Model NO.
ZLC-AUJP200
Machine Material
Stainless Steel
Packaging Material
Plastic
Warranty
One Year
Power
220V 1.5kw-2.5kw
Bottle Size (mm)
D40-180 H80-350
Host Size (mm)
D2000, H2000
Gross Weight
1000kg
Speed
4000-40000bph
Compressed Air
No Need
Product Description

The automatic bottle unscrambler is designed for sorting disordered polyester or PET bottles. Scattered bottles are sent to the storage circle by the elevator. Through the bottle turning device, bottles are sorted upright and output by the air conveying system for the next process.

  • Premium Construction: Outer cylinder and parts in contact with bottles are made of stainless steel AISI304.
  • High-Quality Bearings: Features domestic first-tier two-way thrust bearings for long-term maintenance-free operation.
  • Clean Operation: Closed structure prevents dust intrusion; includes removable covers for easy cleaning.
  • Intelligent Detection: Equipped with mechanisms to remove damaged or deformed bottles without machine shutdown.
🚀 Product Advantages
  • SUS304 Stainless Steel: Meets strict food industry standards.
  • Compact Design: Scientific layout saves significant workspace.
  • Energy Efficient: Total power ≤ 3KW. No compressed air required, avoiding secondary pollution.
  • Ultra-Low Damage: Damage rate as low as 1/10,000, far superior to industry standards.
  • Versatile Compatibility: Easily adjustable for various bottle types without professional expertise.
  • High Output: Production efficiency is 30% higher than similar domestic products.
Detailed Photos

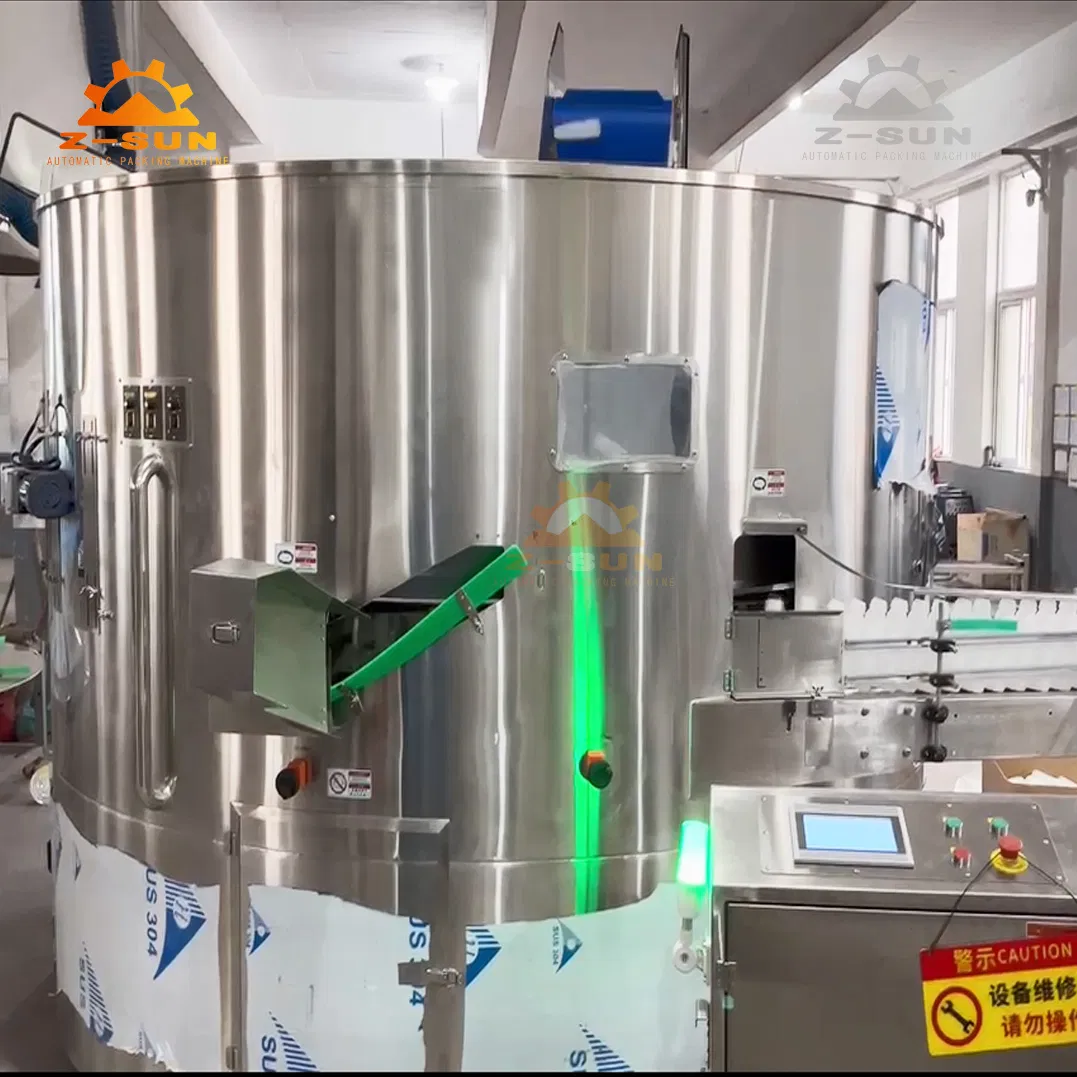

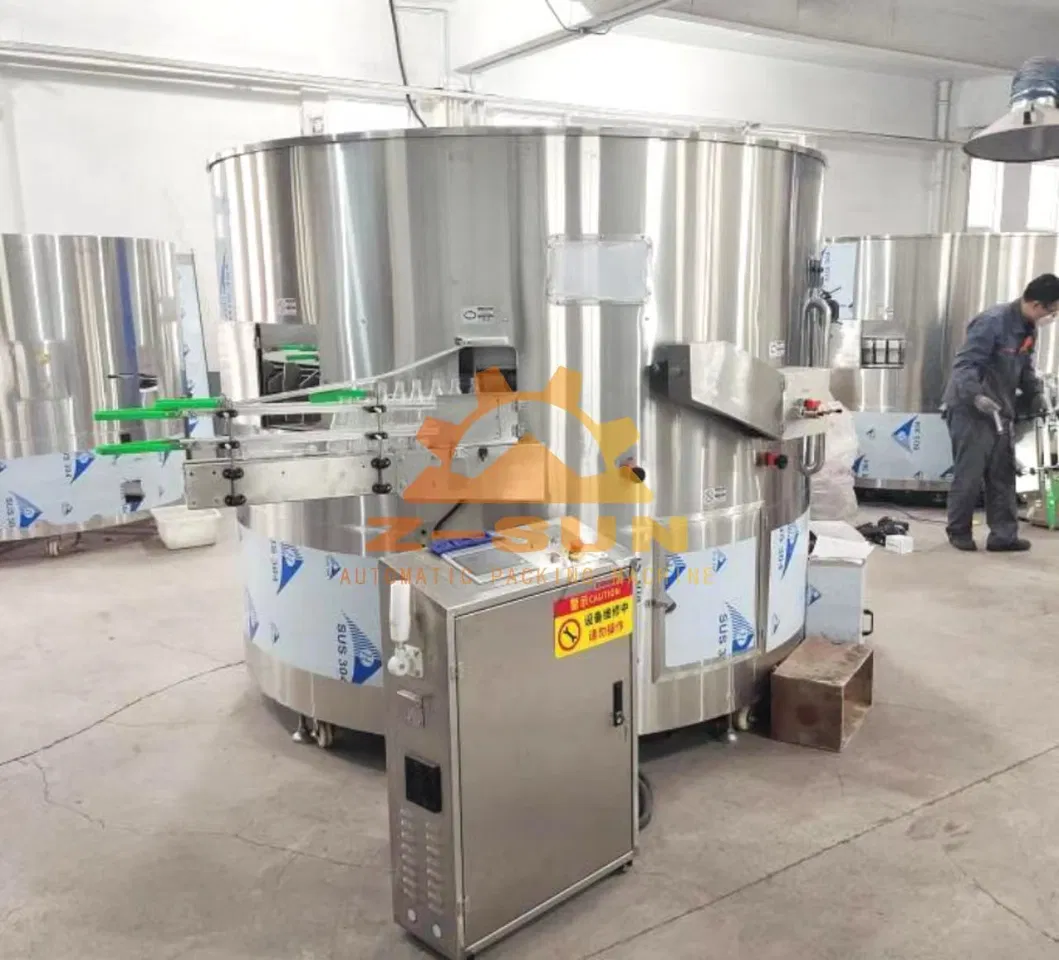

Automatic Bottle Sorting Machine

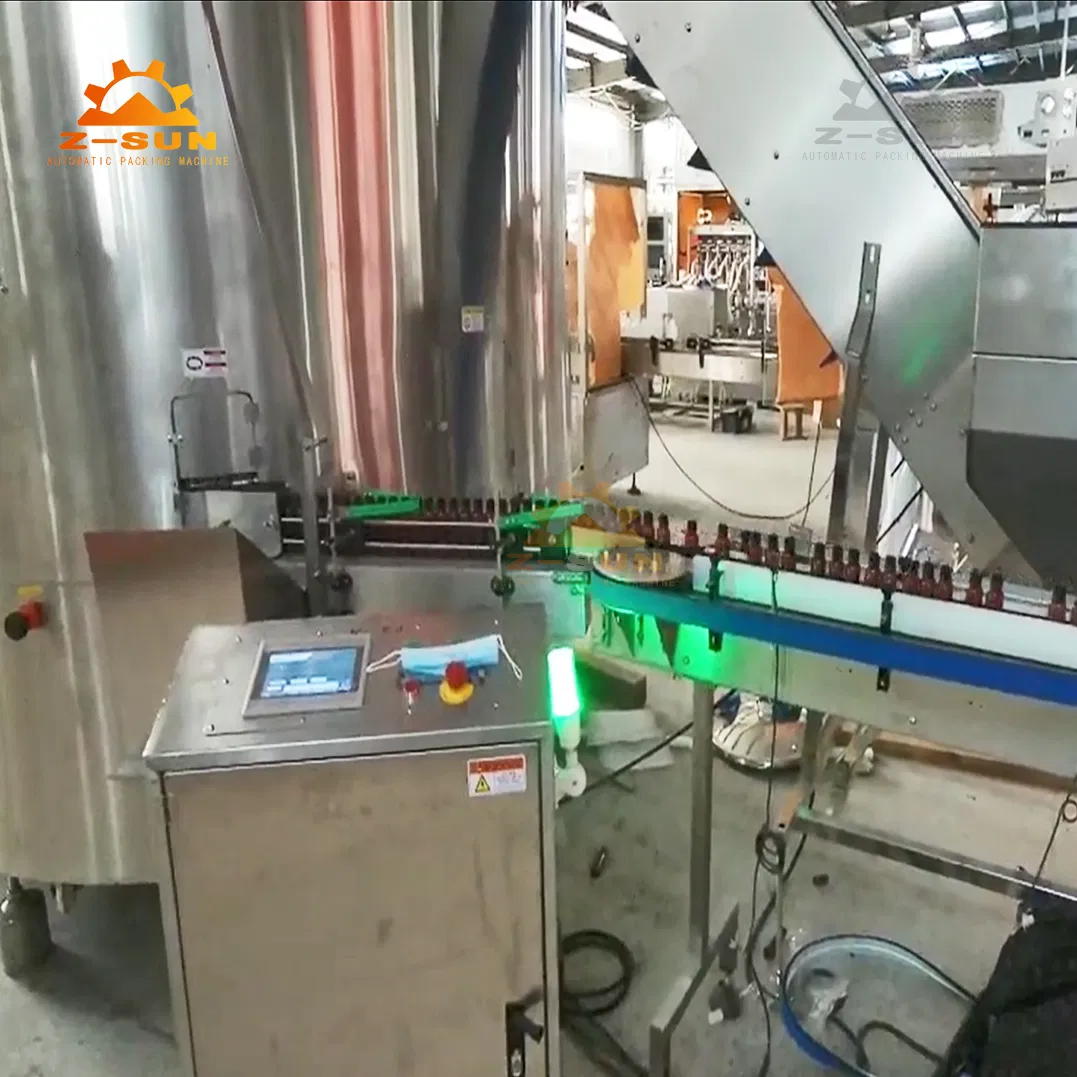

Main Product View

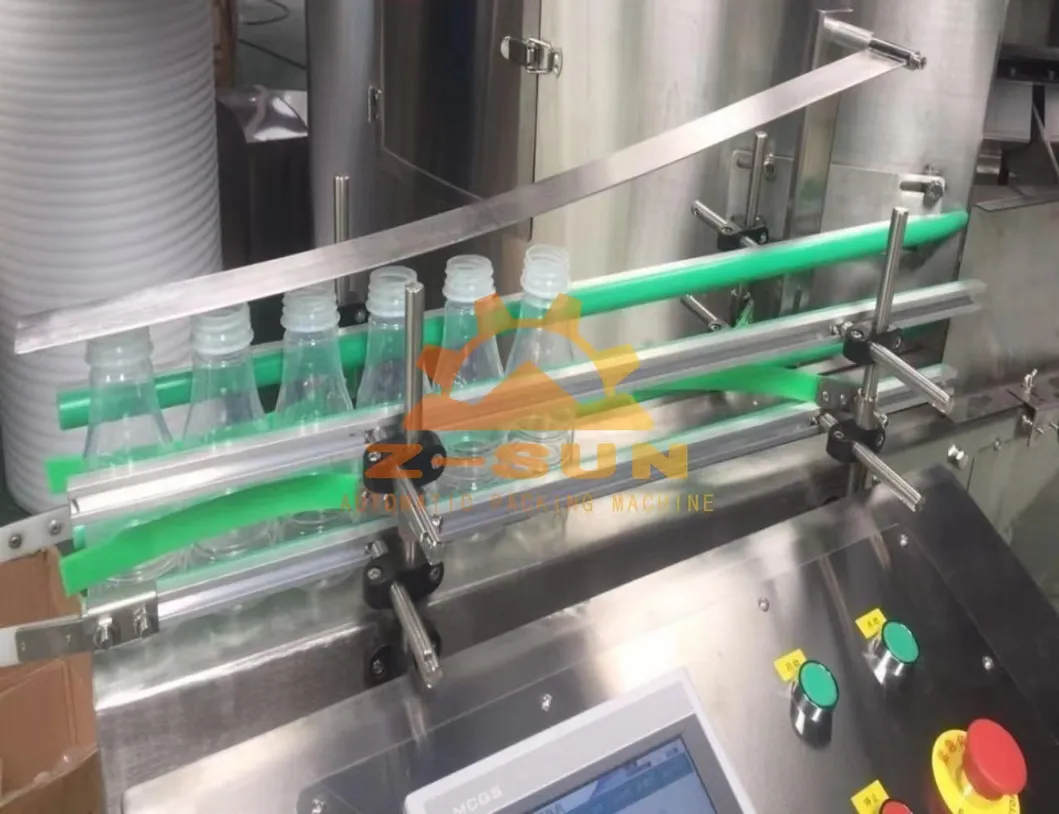

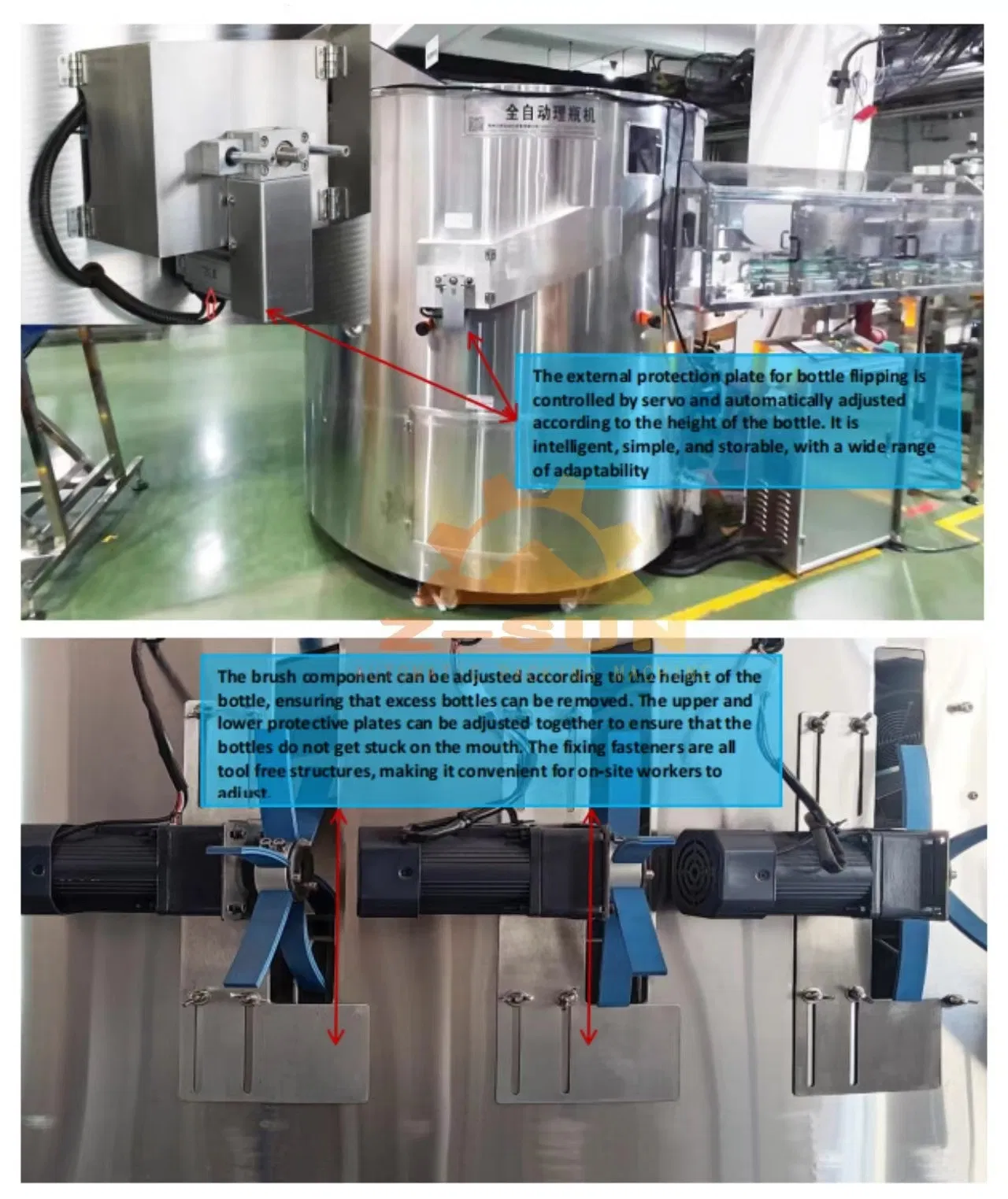

Detail Drawing

Partial Detail Drawing

Component Highlights:

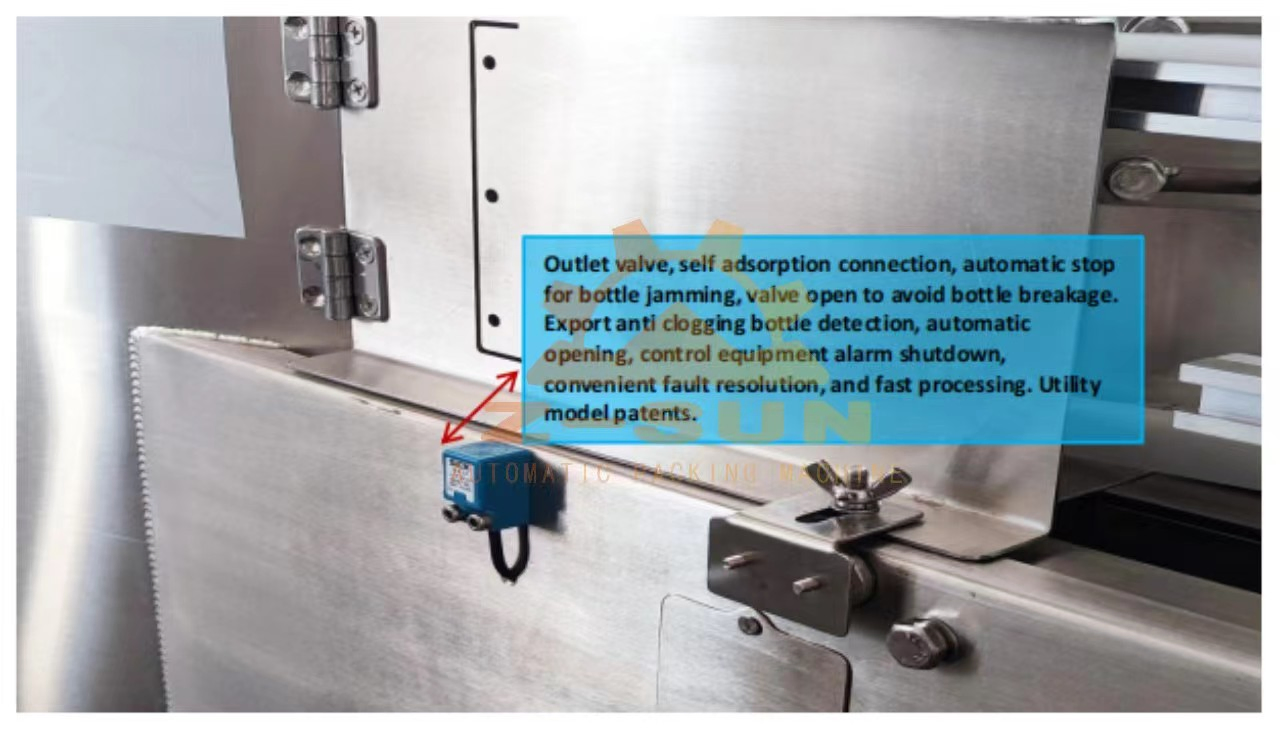

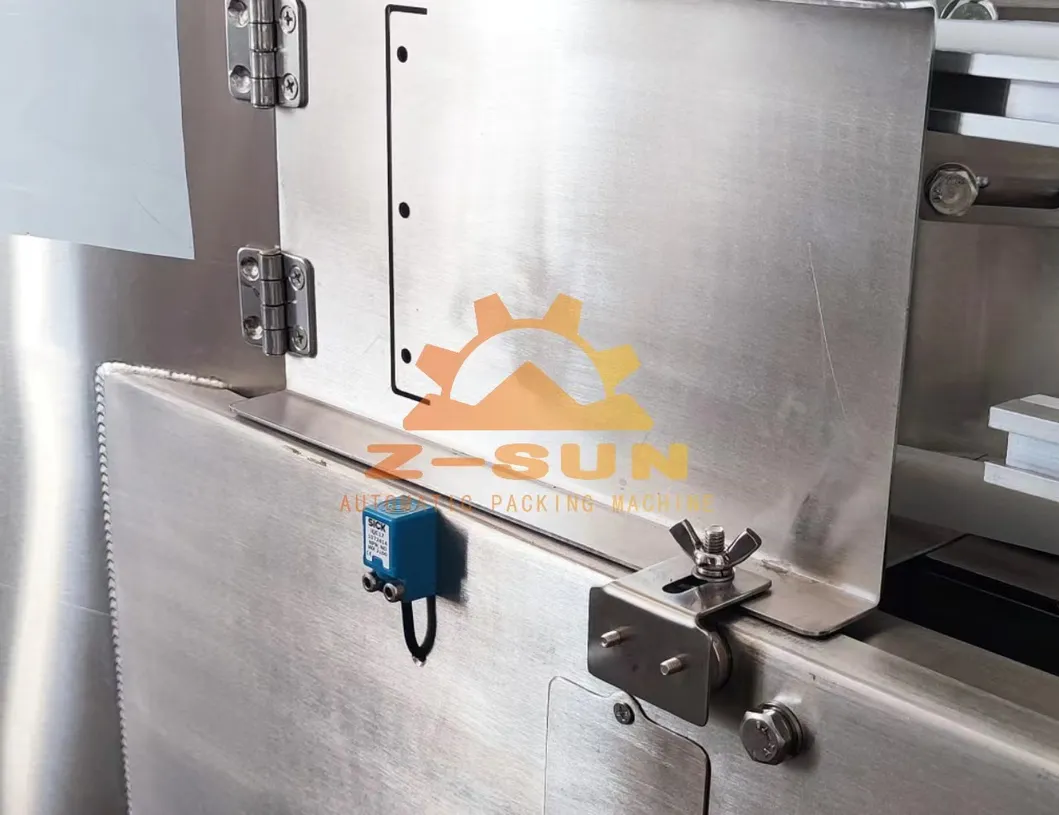

Outlet System

Outlet valve with self-adsorption

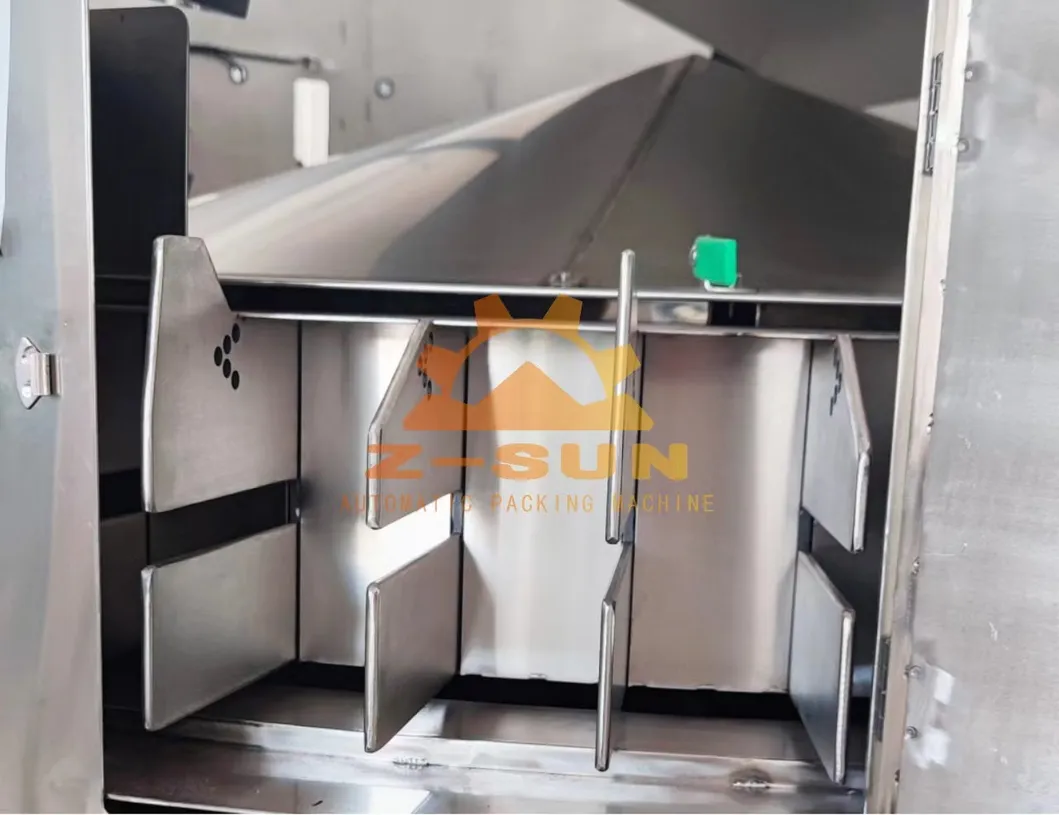

Clogging Detection

Anti-clogging detection system

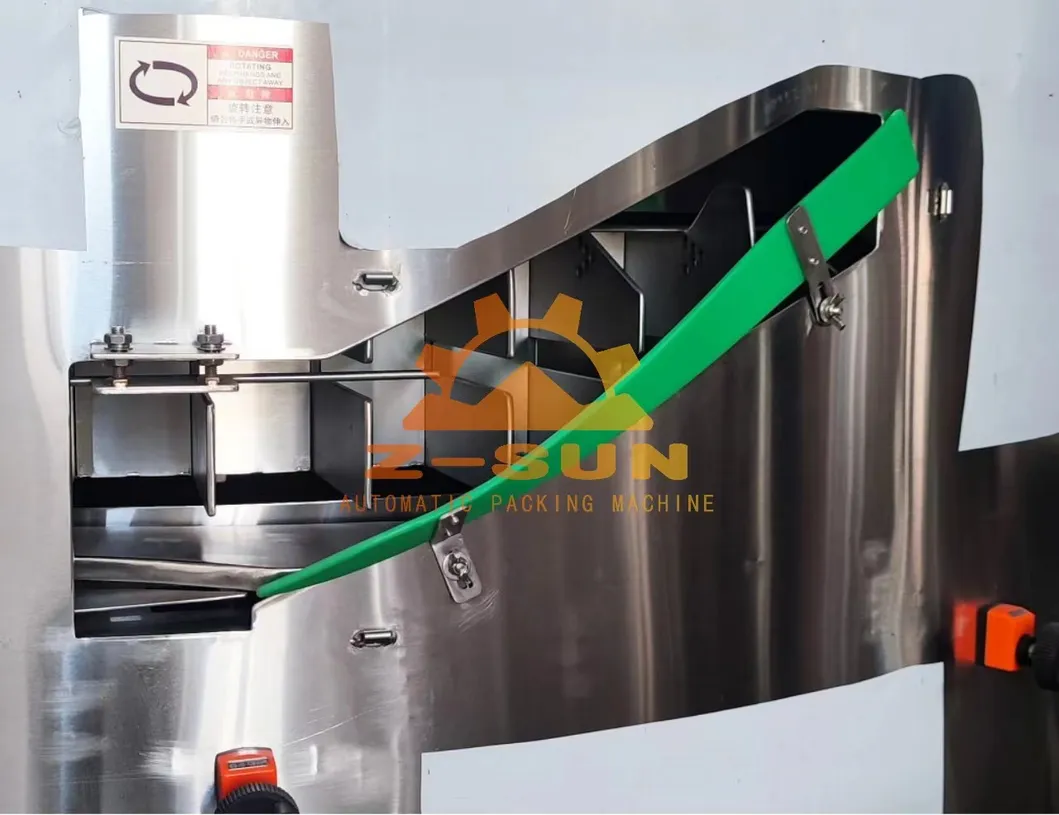

Bottle Holder

Adjustable bottle holder

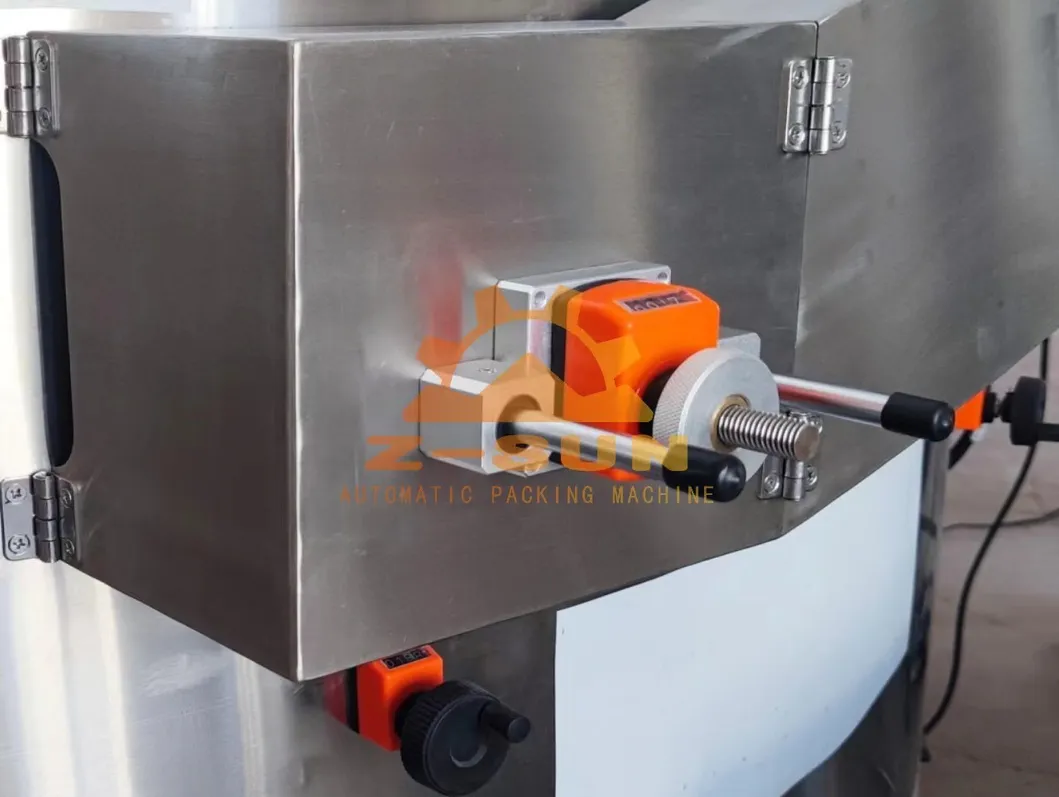

Position Display
Technical Parameters
Type LC-PMBM-120 LC-PMBM-160 LC-PMBM-200 LC-PMBM-240 LC-PMBM-300
Host Size (mm) ∅1200X1700 ∅1600X1700 ∅2000X1700 ∅2400X2000 ∅3000X2000
Bottle Size (mm) ∅40-80, H50-220 40-80, H50-220 ∅40-120, H50-350 ∅40-150, H80-350 ∅40-180, H80-350
Speed (bpm) 100-200 100-200 100-300 100-350 100-650
Power Supply 220V, 1.8Kw 220V, 1.8Kw 220V, 1.8Kw 220V, 1.8Kw 220V, 1.8Kw
Factory & Production
Factory View
Production Line

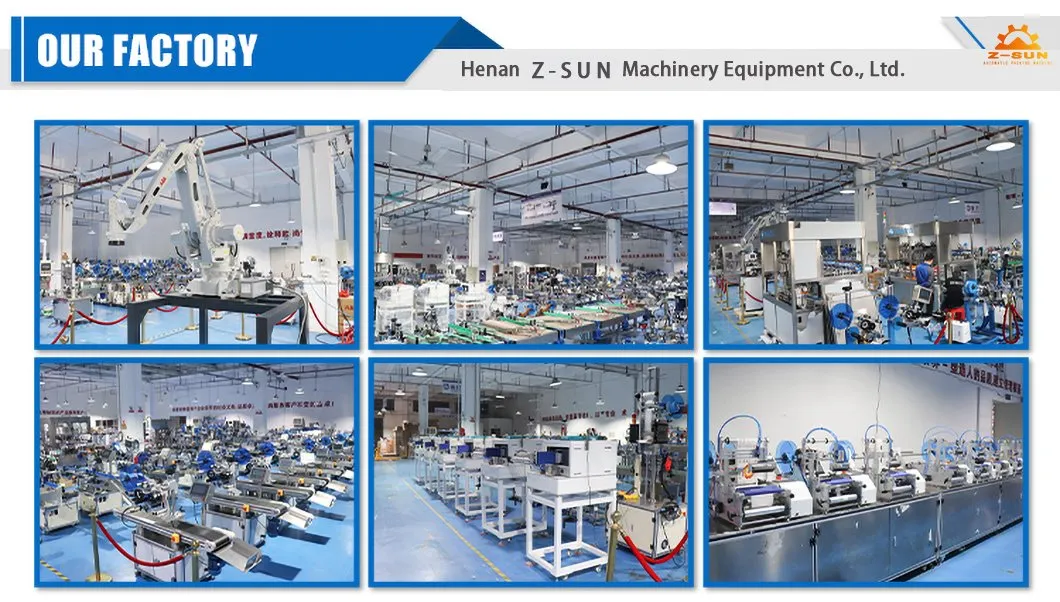

Workshop
Quality Control
Equipment
Testing
Frequently Asked Questions
What materials are used to build the machine?
The main cylinder, rotating cylinder, and all parts that come into contact with the bottles are made of high-quality AISI304 stainless steel to ensure food-grade safety and durability.
Does this bottle unscrambler require compressed air?
No, one of our key advantages is that our machine does not use compressed air. This significantly reduces energy consumption and eliminates the risk of secondary bottle pollution from unclean air.
How many bottle types can this machine handle?
The machine is highly versatile and can be adjusted for various bottle types and sizes. Switching between different bottle types is simple and requires only basic adjustments.
What happens if a damaged bottle gets into the machine?
The machine is equipped with an automatic detection and removal mechanism. If a blockage occurs due to abnormally shaped bottles, an alarm will signal, and the operator can easily clear it following the control panel indicators.
Is the maintenance difficult?
Not at all. The machine uses a closed structure to minimize dust entry and features two removable top covers for easy cleaning and routine maintenance.
What is the production speed of the equipment?
Depending on the model, the speed ranges from 4,000 to 40,000 bottles per hour (bph), providing a 30% increase in output compared to standard industry specifications.
